Connection calculations
Eurocode 3 checks covering load paths, members, bolts, welds, plates, anchors, reactions, and assumptions.
Eurocode 3 connection design
Steel connection design for fabrication.
Clear models, stress plots, calculations, and practical details for steel fabricators, with engineering and project support when the job moves.
Bolts and weldsPlates and anchorsFull reports
Calculate. Detail. Deliver.
Technical answers that keep steelwork moving.
Tekto closes the gap between structural intent and the information the workshop needs to fabricate, check, and issue.
Fabrication-ready output
Readable model views, stress fields, report outputs, marked-up drawings, dimensions, and clear design notes.
Project delivery support
Technical queries, coordination, sequencing input, design changes, approvals, and practical support through fabrication and site.
Real IDEA StatiCa outputs
Three connection types. The engineering made visible.
Each example pairs the connection model with its equivalent stress field. Hover or focus a connection to move from geometry to analysis.

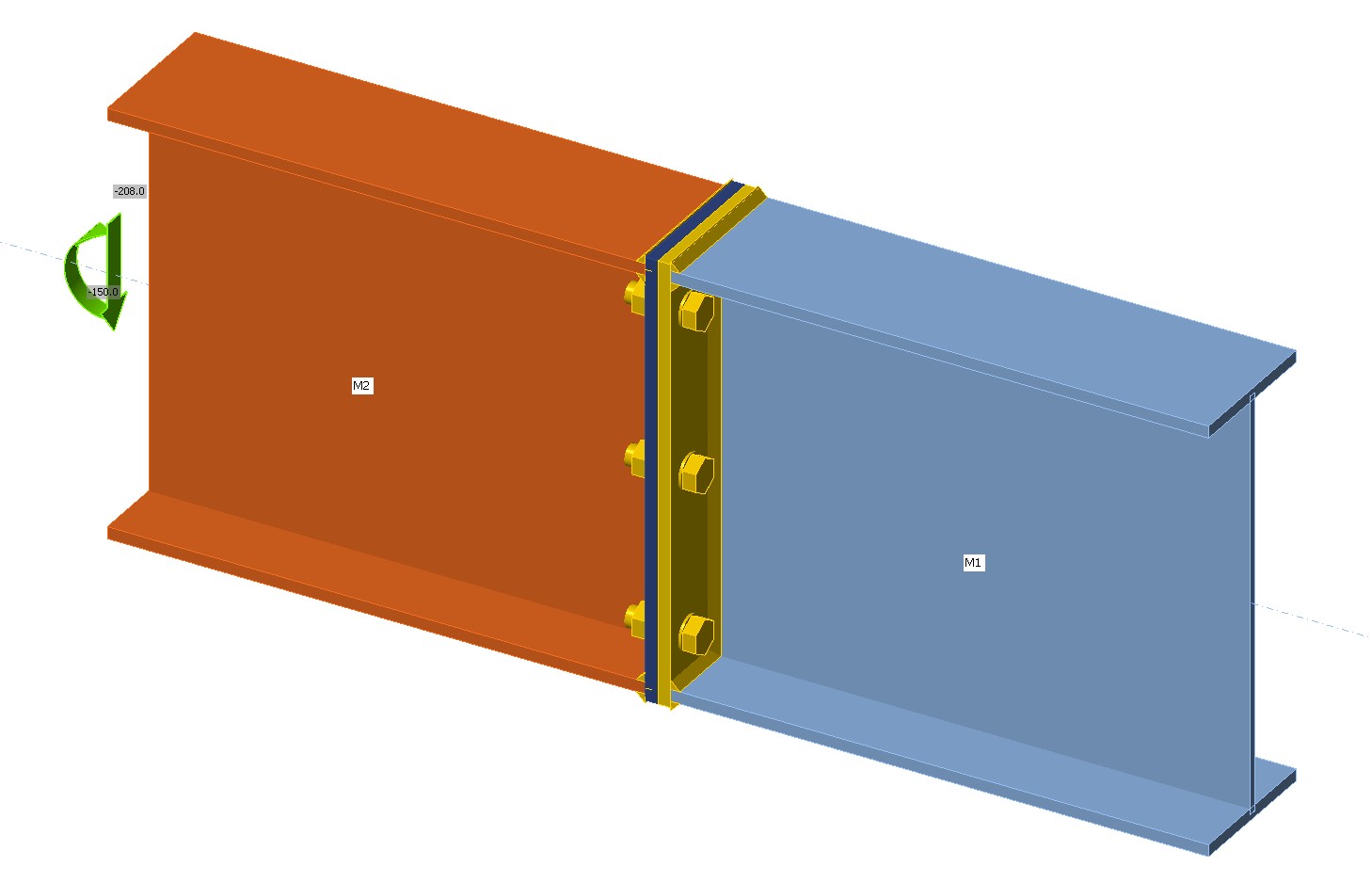

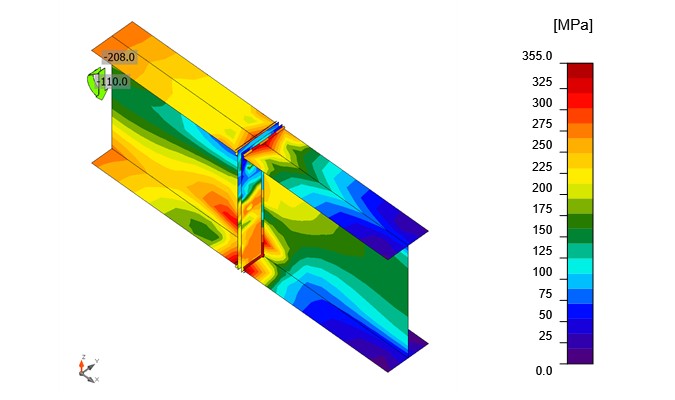

End plate connection
Member, plate, bolts, welds, load effects, and stress distribution resolved as one checked connection.

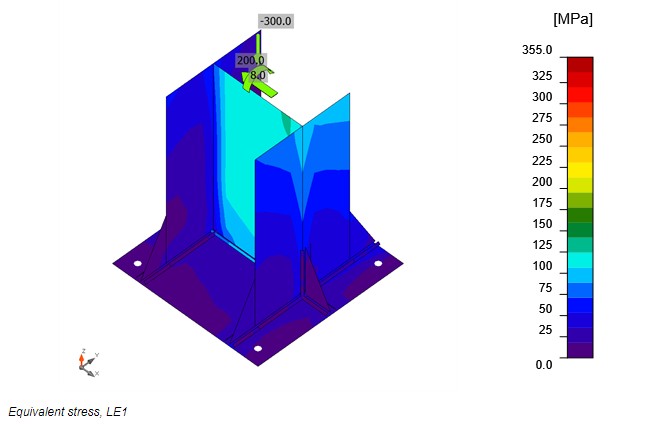

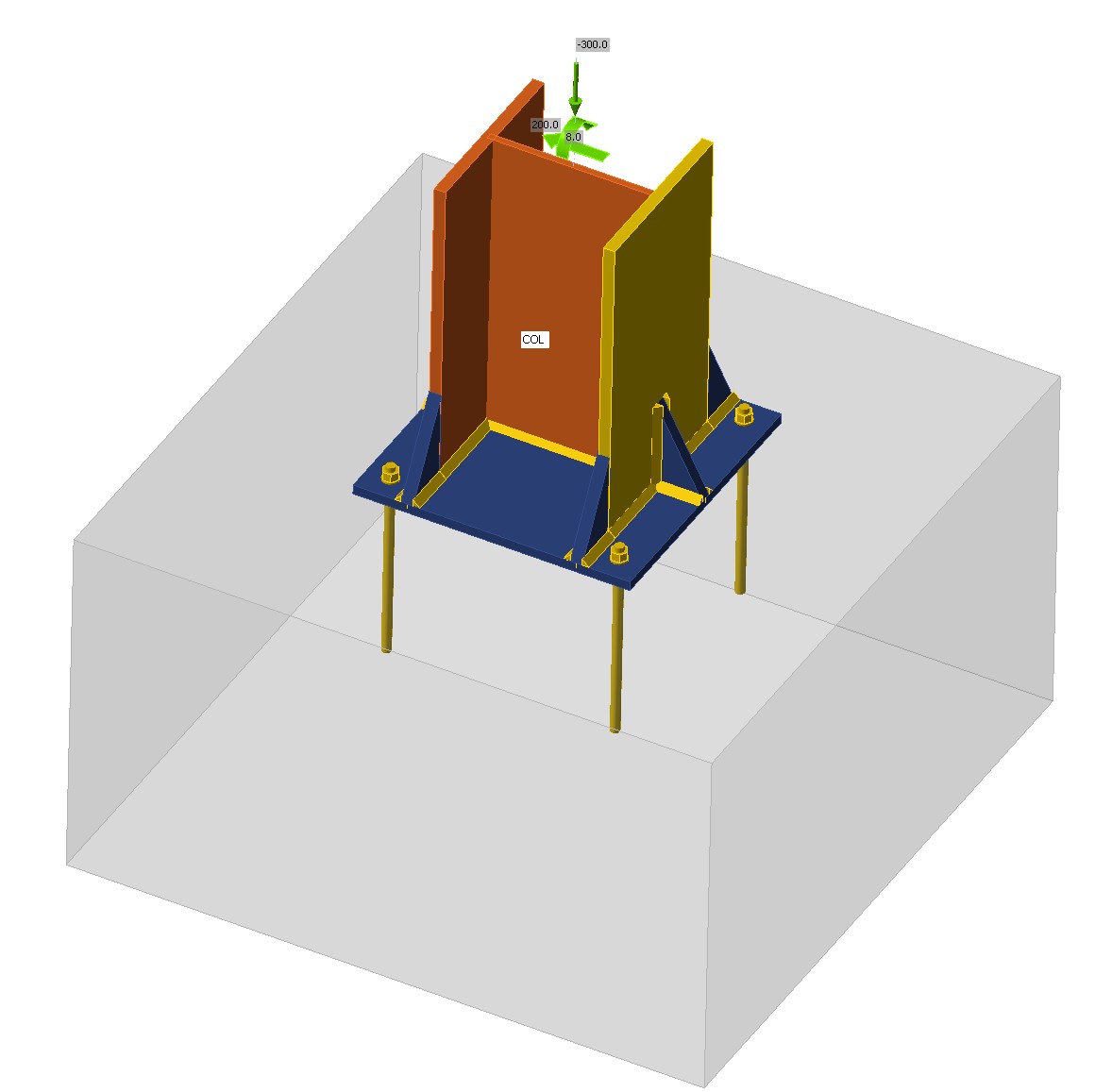

Base plate + anchors
Base plate, stiffeners, anchors, concrete bearing, and applied actions checked with a clear load path.

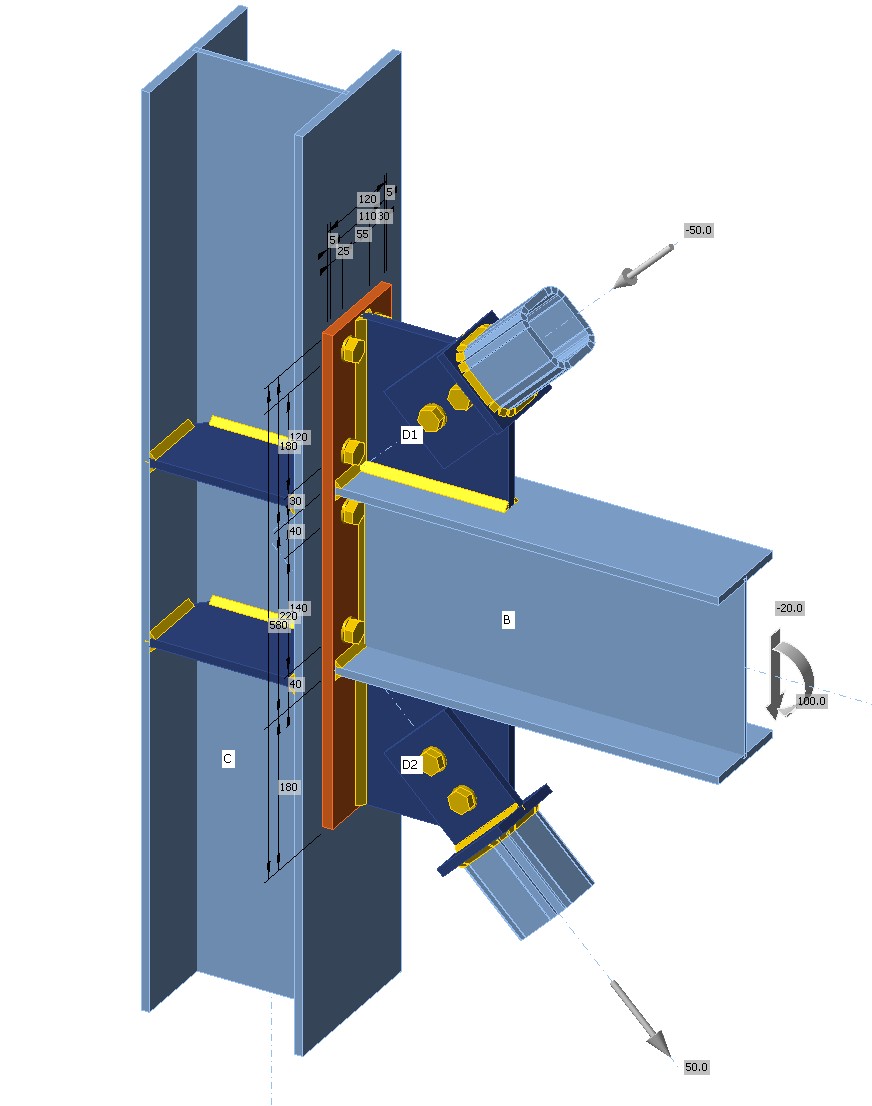

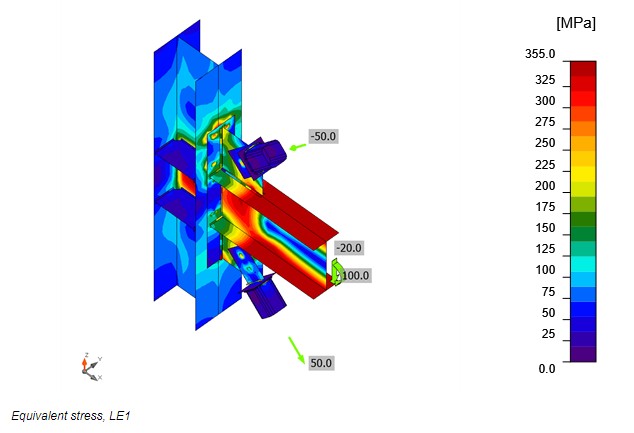

Braced frame node
Beam, column, brace, gussets, plates, bolts, and welds coordinated in one complex connection model.
Connection design in motion
Connection design without the delay.
This Remotion sequence uses the same engineering source material as the live Tekto campaign: model views, stress plots, report outputs, and a direct route from detail to checked connection.
- 01 Eurocode 3 connection checks
- 02 Model and stress-field evidence
- 03 Clear report outputs for issue
From detail to checked output
A controlled route from drawings to fabrication.
The connection check, assumptions, report, and delivery context stay together so the information remains useful when it reaches the workshop.
Read the detail
Drawings, reactions, constraints, interfaces, and missing information.
Build the model
Connection geometry, load path, components, checks, and assumptions.
Issue the evidence
Readable model views, stress plots, utilisations, and calculation output.
Keep it moving
Approvals, workshop questions, revisions, coordination, and site queries.
Project delivery
Engineering support that stays useful when the job goes live.
Tekto can stay involved beyond the calculation pack, keeping design changes, approvals, fabrication questions, and site constraints connected to the checked design.
Technical queriesClear responses grounded in the connection design intent.
Design coordinationPractical input across drawings, interfaces, and trades.
Fabrication supportResolve workshop questions before they become delays.
Site decisionsFocused engineering input when real constraints appear.
Start with the detail
Send the connection that needs resolving.
Share the drawing, reactions, sketch, or site issue. Tekto will review the scope and confirm the next practical step.
